RSIC-1 ADM Shoot In Multi Clips (100 clip box)
In stock. This product ships in 1 business day.
Regular price
$989.99
Sale price
Regular price

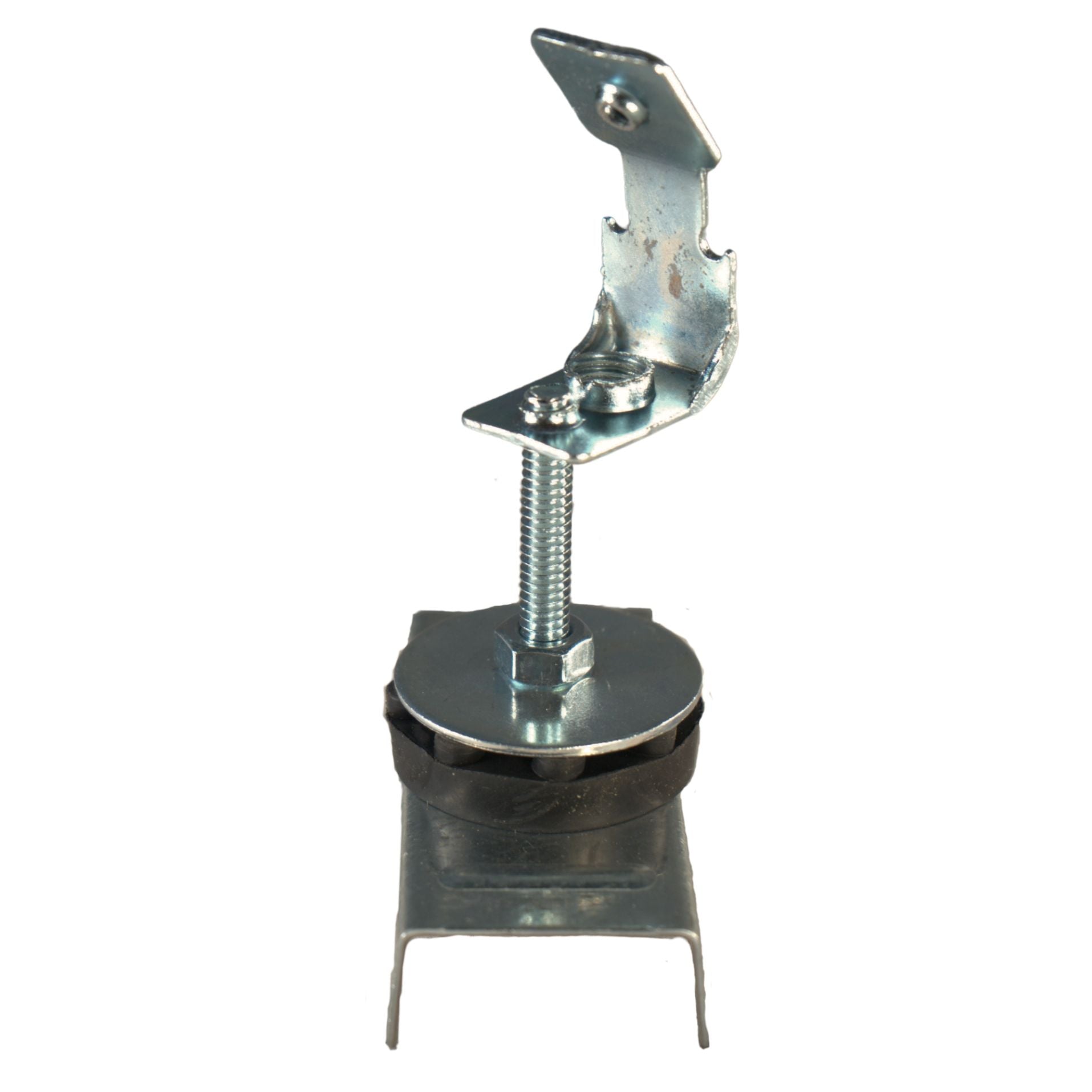

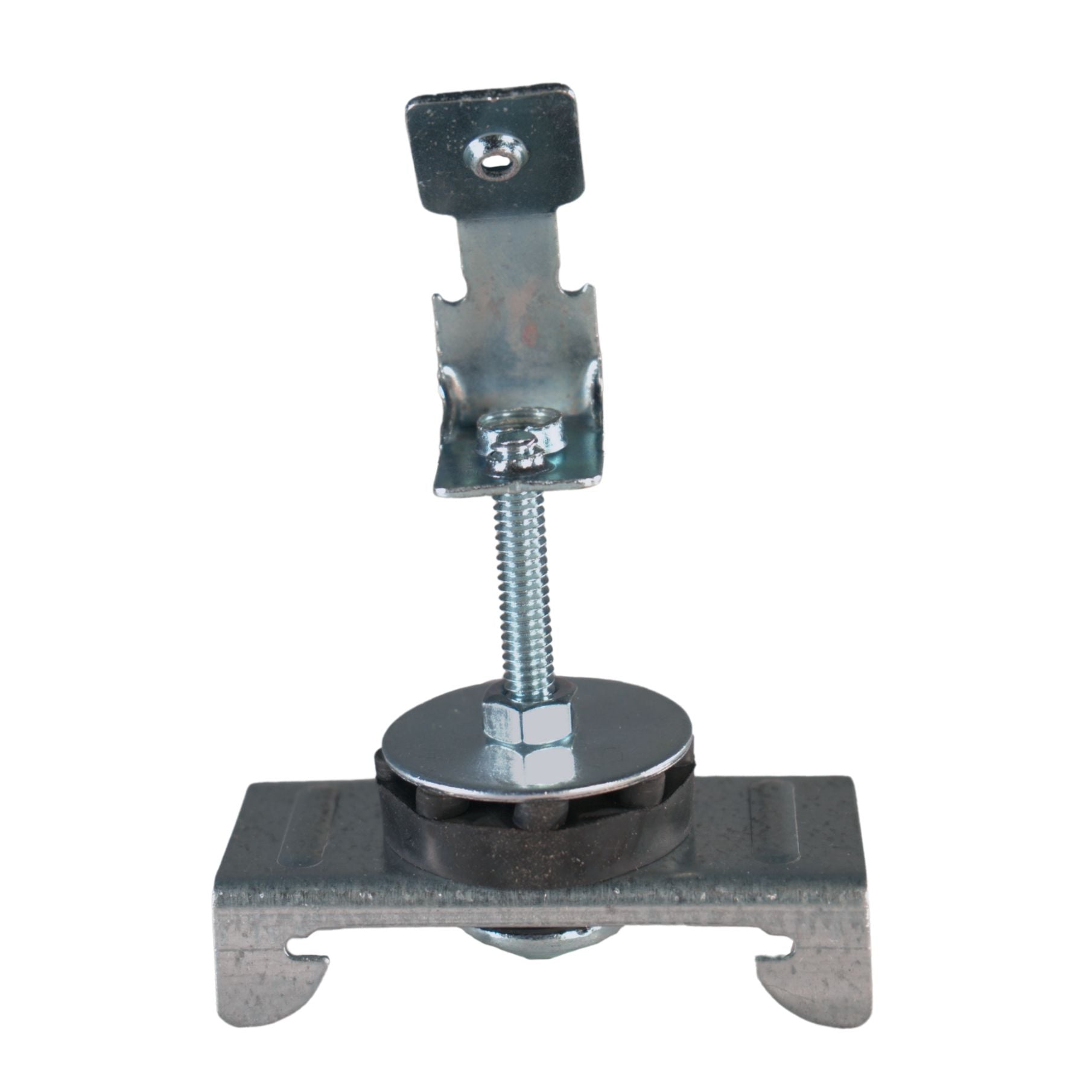

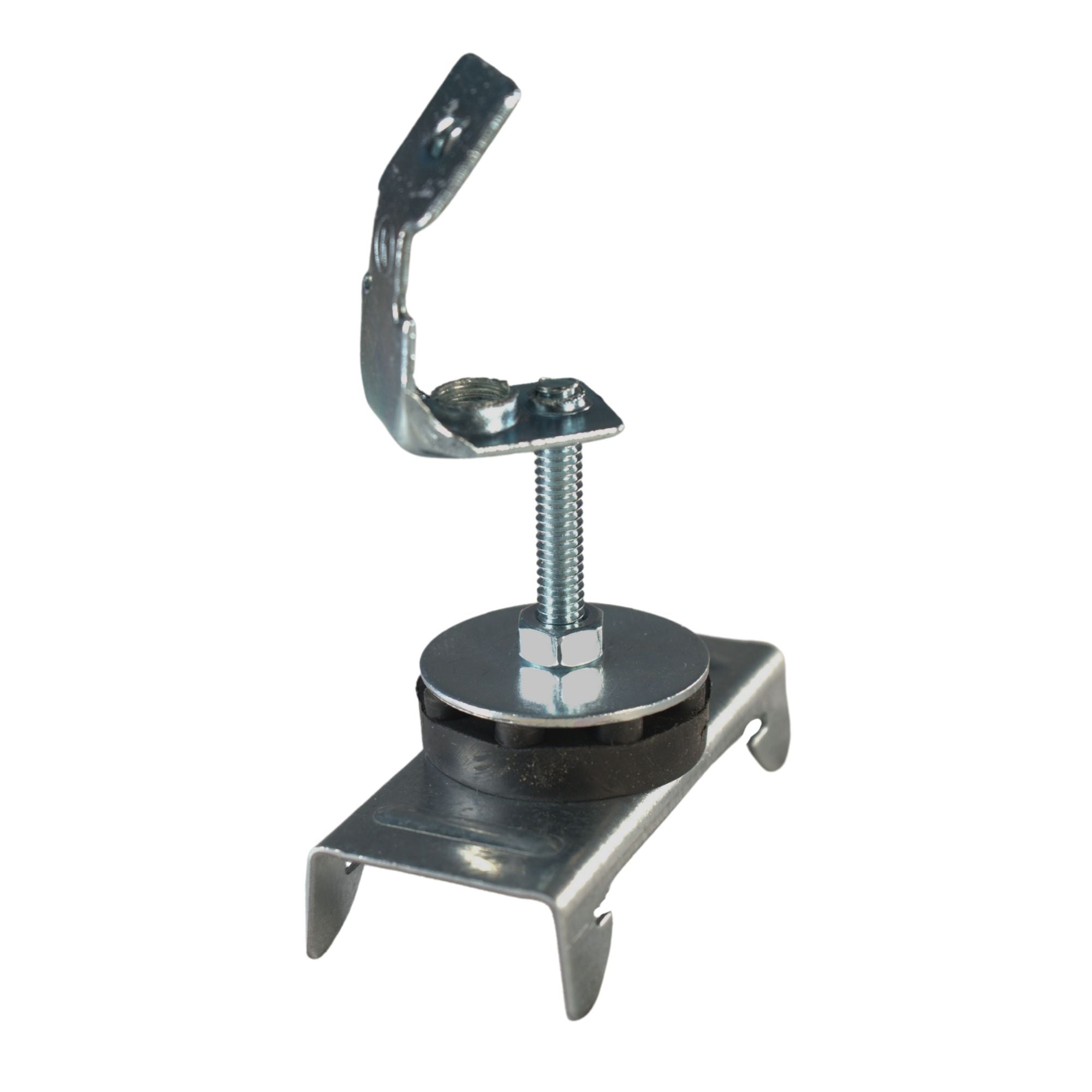

RSIC-1 ADM Shoot-In Multi Clips
RSIC-1 ADM shoot-in multi clips are the cost-conscious, time-friendly alternative to spring isolators. These clips save on labor with an adjustable isolator to maximize performance with a minimum ceiling drop, and they can be shot into concrete for a speedy install. Keep your space and keep your performance with RSIC-1 ADM clips!
Features
- Maximize acoustical performance with a minimal ceiling drop
- Increase IIC Rating of a ceiling by up to 30 points
- Can be shot into concrete decks for quick install
- Perfect for tight drops where wire hanging is difficult
- Use with any concrete slab, wood, or steel system needing additional noise control
- Supports multiple layers of 5/8" gypsum board
- Large variety of UL rated design assemblies
- Assembled in the USA
Couldn't load pickup availability
Specs
Specs
| Dimensions | 3″ x 1.25″ x 1.5″ nominal |
| Maximum Load | 36 lbs per isolator |
| Maximum Spacing | 24" x 48" oc will support up to 2 layers of 5/8" drywall 16" x 48" oc will support 3 layers of 5/8" drywall |
| Ceiling Drop Minimum | 2-5/8" |
| Ceiling Drop Maximum | 12" |
| Furring (Hat) Channel | 0.0018" thick 25 gauge, hemmed edge detail Depth: 7/8" Width (bottom): 2-9/16" to 2-11/16" Width (top): 1-1/4" Meets or exceeds SFIA and SSMA requirements |
| RSIC-1 ADM to Concrete | 3/4" minimum gas or powder actuated pin |
| RSIC-1 ADM to Wood | #7 x 1-5/8" minimum size coarse thread screw |
| RSIC-1 ADM to Steel | #7 x 1" minimum size fine thread screw |
| Estimated Labor Rates | 60 clips per hour | 550 LF of hat channel per hour |
Installation Instructions
Installation Instructions
- Install RSIC-1 ADM Multi Clip into concrete decks or joists:
- For concrete, shoot into the concrete with a gas or powder actuated 3/4" pin minimum
- For wood or steel screw directly to your wood or metal frame with approved fastener with a maximum spacing of 48" on center
- Bend the RSIC-1 clip down until it parallel with the floor.
- Adjust the height of the RSIC-1 on the threaded rod/bolt to desired height.
- Lock RSIC-1 ADM into final elevation with jam/lock nut.
- Ensure the metal ferrule is tight to the washer, slightly compressing the rubber.
- Snap furring (hat) channels into each row of clips, maximum spacing 24" oc. Furring channel should be 0.0018" (18 mil) thick 25 gauge, hemmed edge detail.
- Install the layers of 5/8" gypsum board into the clips with 1/4" min. gap around the ceiling perimeter to be sealed with acoustical caulk.

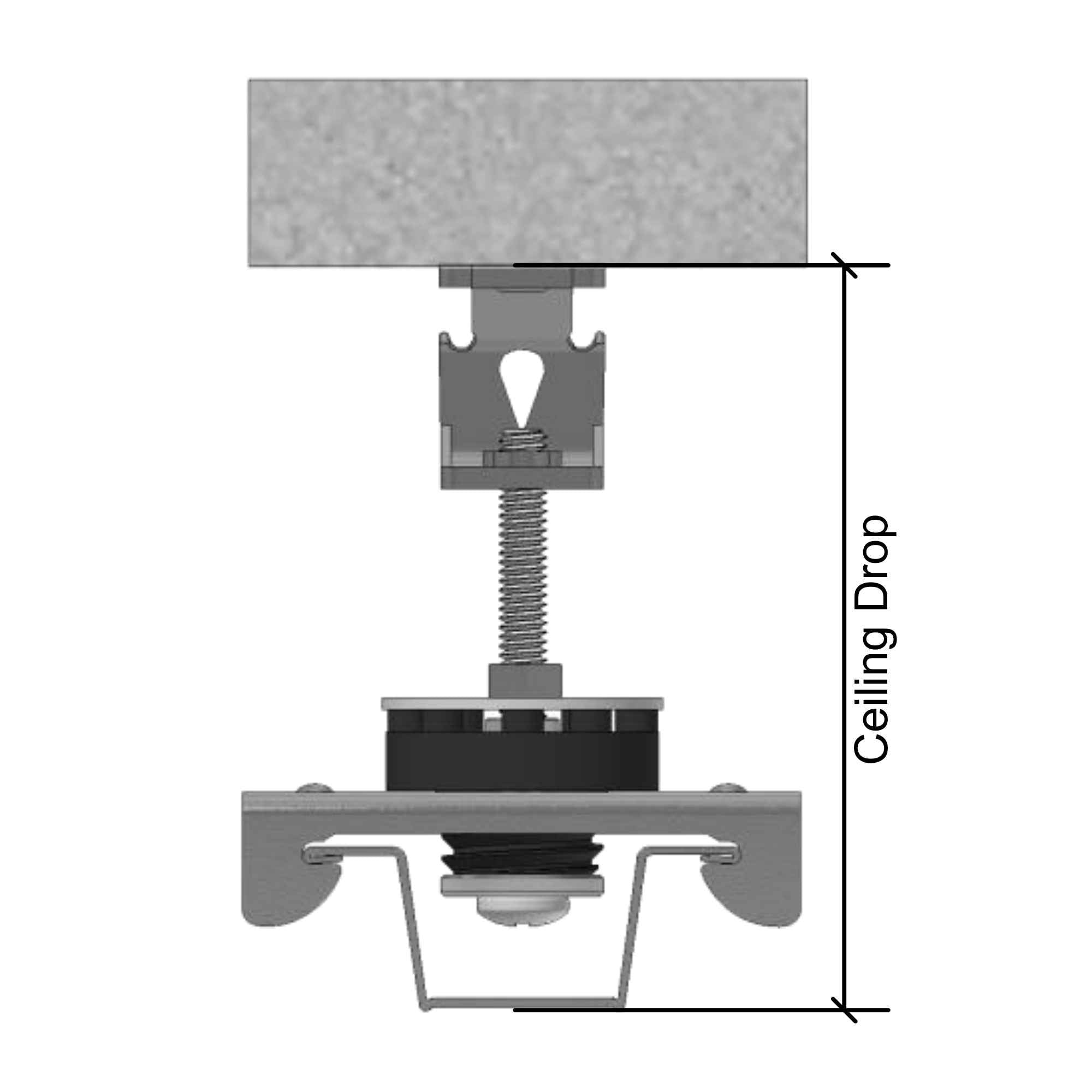

Ceiling Drop Guide
Ceiling Drop Guide
| Ceiling Drop Size | Min Drop | Max Drop |
| 2-5/8" | 2-5/8" | 2-5/8" |
| 3" | 3" | 3-1/2" |
| 3-1/2" | 3-1/2" | 4" |
| 4" | 4" | 4-1/2" |
| 4-1/2" | 4-1/2" | 5" |
| 5" | 5" | 5-1/2" |
| 6" | 6" | 6-1/2" |
| 7" | 7" | 7-1/2" |
| 8" | 8" | 8-1/2" |
| 9" | 9" | 9-1/2" |
| 10" | 10" | 10-1/2" |
| 11" | 11" | 11-1/2" |
| 12" | 12" | 12" |
*for a ceiling drop greater than 12", we recommend the RSIC-WHI, RSIC-DC04 with wire, or the RSIC-1.5 CRC.
For help choosing the correct ceiling drop for your assembly, call us at 1-800-679-8511.

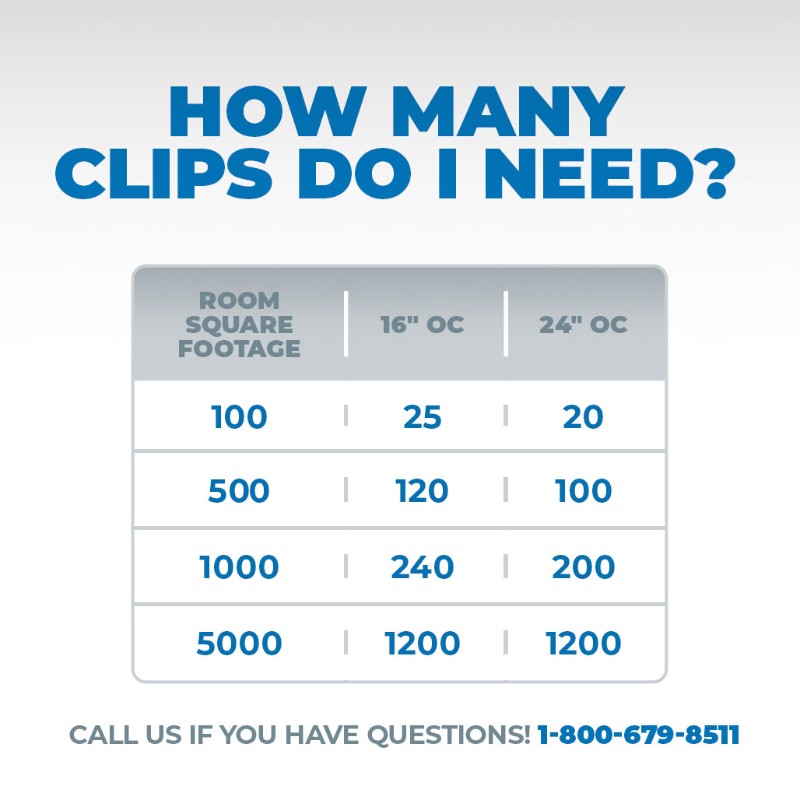

Estimated Clips Needed for Ceilings
Estimated Clips Needed for Ceilings
24" x 48" OC (Concrete, Wood or Steel)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 24 clips | 44 clips | 64 clips | 84 clips |
| 20' | 44 clips | 66 clips | 99 clips | 126 clips |
| 30' | 64 clips | 99 clips | 144 clips | 189 clips |
| 40' | 84 clips | 126 clips | 189 clips | 231 clips |
16" x 48" OC (Concrete)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 36 clips | 64 clips | 96 clips | 124 clips |
| 20' | 64 clips | 96 clips | 144 clips | 186 clips |
| 30' | 96 clips | 144 clips | 216 clips | 279 clips |
| 40' | 124 clips | 186 clips | 279 clips | 341 clips |
Product FAQs
| Size on this page | Fits a ceiling drop of |
| 2-5/8" | 2-5/8" |
| 3" | 3" to 3-1/2" |
| 3-1/2" | 3-1/2" to 4" |
| 4" | 4" to 4-1/2" |
| 4-1/2" | 4-1/2" to 5" |
| 5" | 5" to 5-1/2" |
| 6" | 6" to 6-1/2" |
| 7" | 7" to 7-1/2" |
| Ceiling size | 24" x 48" o.c. | 16" x 48" o.c. (concrete) |
| 10' x 10' | 19 | 23 |
| 10' x 20' | 37 | 45 |
| 10' x 30' | 55 | 67 |
| 10' x 40' | 73 | 89 |
| 20' x 20' | 73 | 89 |
| 20' x 30' | 110 | 134 |
| 20' x 40' | 146 | 178 |
| 30' x 30' | 164 | 200 |
| 30' x 40' | 219 | 267 |
| 40' x 40' | 291 | 356 |
