How well does Mela Mute Acoustic Egg Crate Foam absorb sound?

A 2" panel is rated NRC 0.75, and is a popular choice for anechoic chambers. Thickness125 Hz250 Hz500 Hz1000 Hz2000 Hz4000 HzNRC 2"0.090.350.770.980.981.000.75

How do you install Mela Mute Acoustic Egg Crate Foam?

We recommend X60 spray adhesive for most jobs. Spray both the foam and the wall or ceiling with 80-100% coverage, and leave up to a 1/2" gap around the panel edge for handling. Let the adhesive tack up for 2-4 minutes. Then press the panel into place gently so you do not crush the wedge tips. Alternatively, you can install them with a combo of P329 spray adhesive plus construction adhesive. See our spray adhesive install guide or construction adhesive install guide for every step.

Can I paint Mela Mute Acoustic Egg Crate Foam?

Yes, you can paint Mela Mute Acoustic Egg Crate Foam. Our Light Grey is the best color to paint, because it is our lowest priced option. Use a latex paint. Field painting may affect the Class A fire rating. If that rating matters for your project, we can custom paint the panels to maintain the Class A fire rating for large orders. Reach out for a quote.

Why is this egg crate pattern sometimes called an anechoic wedge?

The wedge shape is named after anechoic chambers. These are echo-free rooms used for acoustic and RF testing. Wedges like this line the chamber walls and absorb reflections from every angle. The same pattern also works in recording studios, broadcast booths, and other rooms that need reflections controlled.

What is Mela Mute Acoustic Egg Crate Foam made of?

Mela Mute Acoustic Egg Crate Foam is a Class A fire rated, open cell, melamine foam. It is non-fibrous, porous, and semi-rigid.

Does Mela Mute egg crate foam come in rolls?

Mela Mute Acoustic Egg Crate Foam comes in flat 24" x 48" panels. The foam can't be rolled.

Is Mela Mute egg crate foam lightweight?

Yes, Mela Mute Acoustic Egg Crate Foam is lightweight. A 24" x 48" panel weighs less than a pound.

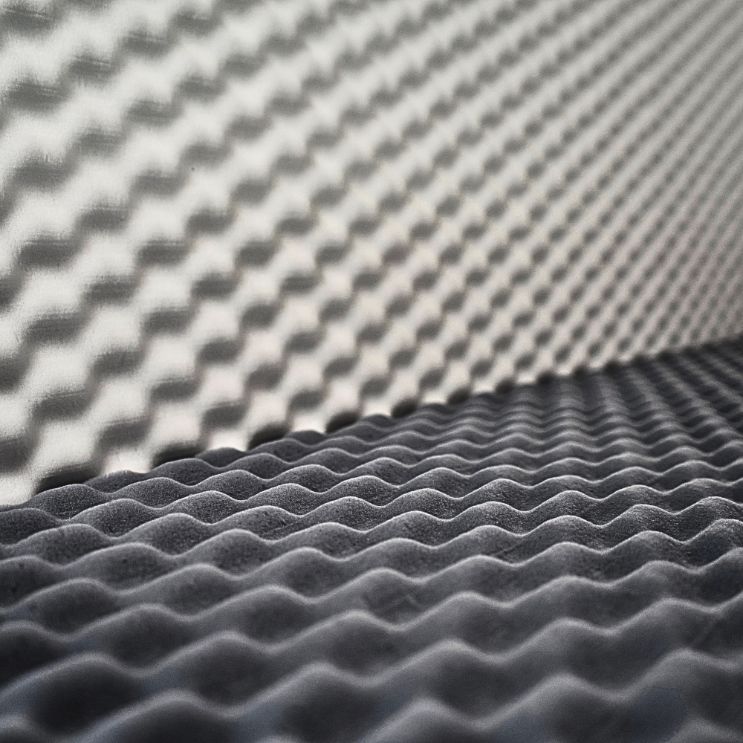

mela mute anechoic wedge dark grey on white

Mela Mute™ Acoustic Egg Crate Foam

Name: Mela Mute™ Acoustic Egg Crate Foam
Brand: Second Skin Audio
SKU: MELA-8-1-2448-AWED-GREY
Availability: InStock

In stock. Light grey Mela Mute ships in 1 business day. All others ship in 2 weeks.

$49.99

Thickness: 1"

1" 2"

Adhesive Options: No Adhesive

No Adhesive Peel & Stick

Color: Light Grey

Square Footage Calculator

Mela Mute™ Acoustic Egg Crate Foam

You don't have to go outside your comfort zone to add absorption into your space, and it doesn't have to be difficult. Mela Mute™ Acoustic Foam is a Class A fire rated melamine foam, meaning it won't burn like other cheap foam, making it a great fit for commercial spaces and home spaces alike. With different colors and sizes to choose from, it's an easy (and super light) pick for acoustical treatments.

Features

Premium foam sound absorber (2": 0.75 NRC)
1" and 2" thick melamine foam options
Lightweight and Class A fire rated
Thermal range: -40°F to 350°F
Each panel is 24” x 48” (8 sq ft)
Paintable

Free domestic shipping on all US orders

Specs

Dimensions	24” x 48” (8 Sq Ft)
Thickness	1" and 2" thicknesses
Weight	1": 0.50lbs \| 2": 0.95lbs
Flammability	Class A Fire Rated
NRC	2": 0.75
Temperature Resistance	-40°F to 350°F
Color	White, Light Grey, and Dark Grey
Paintable	Yes

Material Testing

Noise Reduction Coefficient

Frequency (Hz)	125	250	500	1000	2000	4000	NRC
2" Mela Mute™ Egg Crate	0.09	0.35	0.77	0.98	0.98	1.00	0.75

Tested Properties	Testing Method	Performance
Acoustical Performance	ASM C423-17 (A-Mount)	2" - 0.75 NRC
Fire Rating	ASTM E84	Class A

Installation Instructions

Map out where each panel will go.
Adhere to wall or ceiling using peel & stick backing or our P329 permanent spray adhesive or a construction adhesive.

Check out our or our !

Common Product Uses

Testing chamber (anechoic chamber)
Office acoustics
Recording studio acoustics
Church and other houses of worship acoustics
Home studio acoustics
Check out our other shapes and options like our Mela Mute™ Linear Wedge Acoustic Foam and Mela Mute™ Pyramid Acoustic Foam for standard applications, our Mela Mute™ Super Wedge Acoustic Foam for lower frequencies, and our Mela Mute™ Corner Bass Trap Acoustic Foam for those hard-to-tame bass frequencies.

Resources

Installation Guides

Spec Sheets

Mela Mute™ Egg Crate Product Sheet

Mela Mute™ Acoustic Egg Crate Foam

$49.99

.section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__panel { visibility: visible; grid-template-rows: 1fr; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__trigger .icon-plus-toggle { display: none; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__item[hidden] { display: block; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__more { display: none; }

A 2" panel is rated NRC 0.75, and is a popular choice for anechoic chambers.

Thickness	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	NRC
2"	0.09	0.35	0.77	0.98	0.98	1.00	0.75

Mela Mute egg crate foam is designed to absorb echo and reverb inside a room, which is why it is popular in studios and music rooms. If you need help keeping sound in or out of a space, call us at 1-800-679-8511 and we will help you find the right products.

Yes, Mela Mute Acoustic Egg Crate Foam is Class A fire rated under ASTM E84, with a flame spread of 10 and a smoke developed rating of 50.

It depends on your application, room size, and how much echo you have to control. Use our acoustic calculator for an estimate, or call us at 1-800-679-8511 and we will help you plan.

Panels are 24" x 48" (8 sq ft). Choose 1" or 2" thick. Colors are White, Light Grey, and Black.
