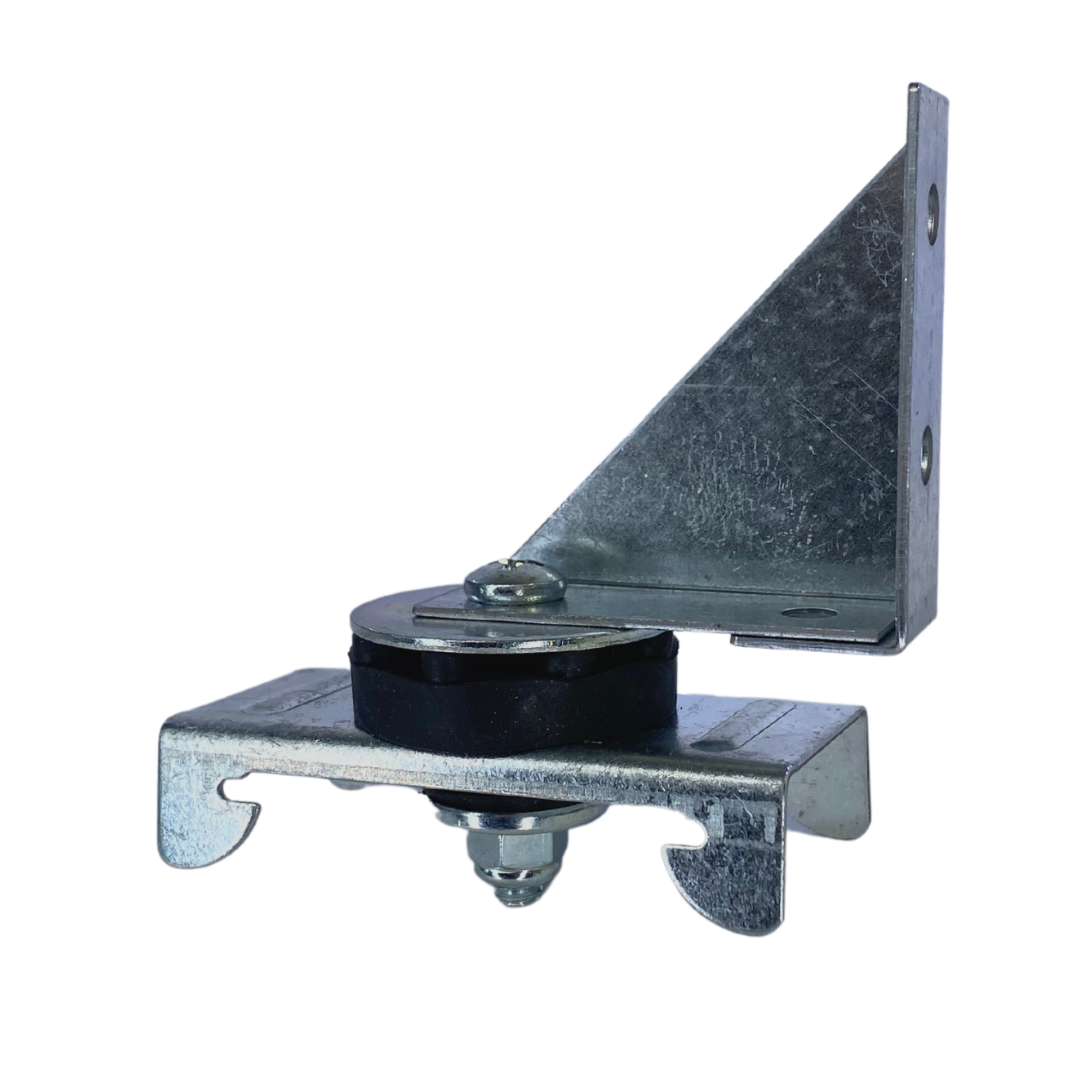

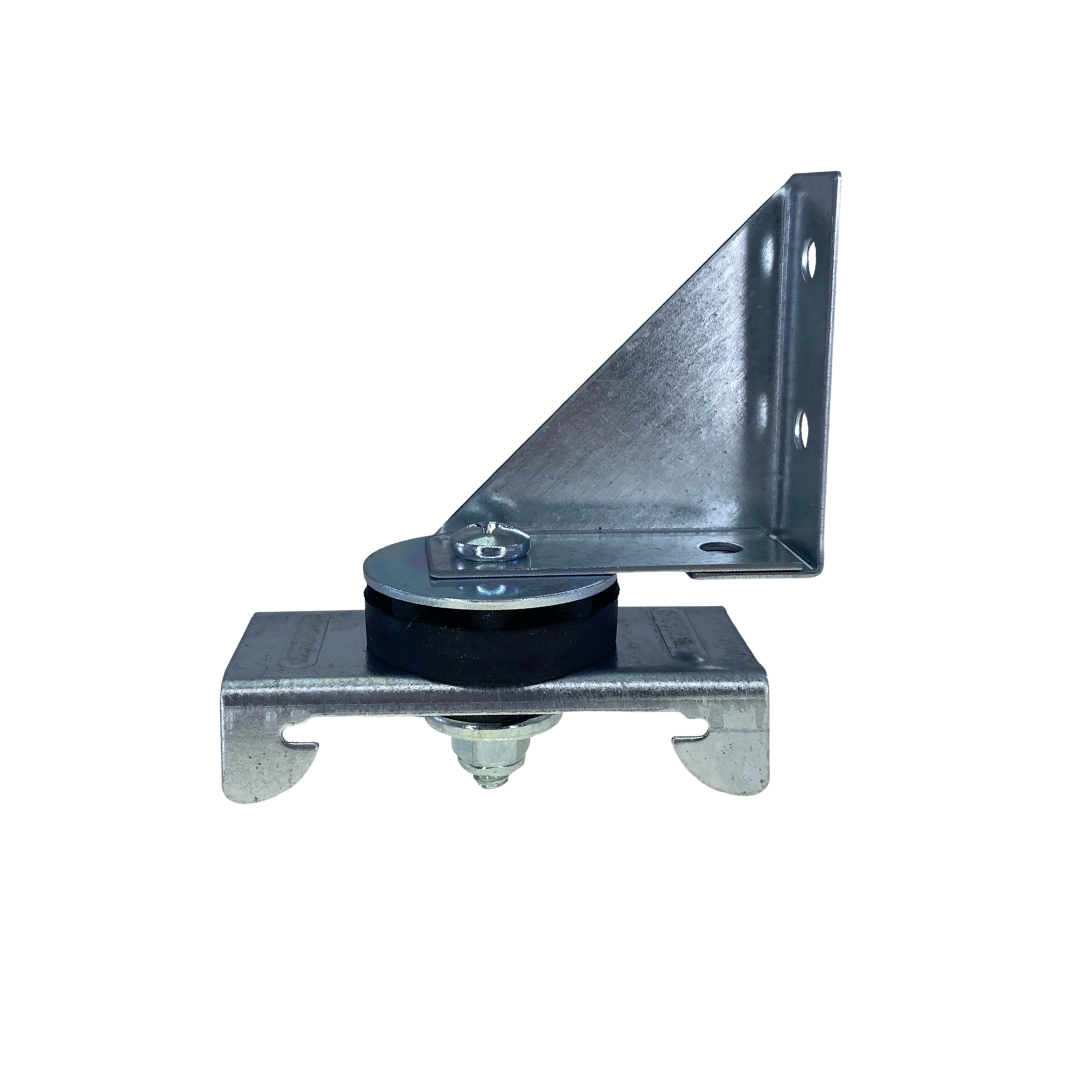

RSIC-1® LP - Low Profile Sound Isolation Clips

RSIC-1 Low Profile keeps the added depth to as little as 1/2" to 1". A standard RSIC-1 clip with 25 gauge hat channel with a hemmed edge detail adds 1-5/8". Low Profile recesses the channel into the joist cavity and runs it parallel to the joists.

Yes, RSIC-1 Low Profile is a great fit for ceilings on wood or steel joists where headroom is tight, such as a basement ceiling. It attaches to the side of the joist, so the clip sits recessed in the joist cavity. It is made for ceilings only.

RSIC-1 Low Profile is designed for ceilings only. Its bracket is built for the downward load of a ceiling, which is a weaker orientation for the sideways loads on a wall. For walls, use RSIC-1. RSIC-DC04 can also build low-profile walls with a minimum depth of 1/2".

RSIC-1 Low Profile supports 1 or 2 layers of 5/8" drywall when it is installed on every joist. Space the clips at 24" x 48" o.c. for joists at 24" o.c., or 16" x 48" o.c. for joists at 16" o.c. For heavier ceilings, add more clips rather than changing the layout.

RSIC-1 Low Profile needs a clip on every joist, up to 48" apart along each joist. That takes more clips than a standard RSIC-1 layout. Call us at 1-800-679-8511 and we can calculate the exact count from your joist spacing and room size.

RSIC-1 Low Profile is not listed in a UL fire rated design, because its channel runs parallel to the joists. If your ceiling needs a 1-hour fire rating, use RSIC-1, which is UL classified.

You need RSIC-1 Low Profile clips, 25 gauge hat channel with a hemmed edge detail, screws, 5/8" drywall, and acoustical sealant. For wood joists, use #8 x 1-1/2" minimum coarse thread screws. For steel joists, use #8 x 1" minimum fine thread screws. #10 or #12 hex head screws are optional for either. Never fasten the clips with nails. The install guide lists the channel dimensions and details.

Fasten a clip to the side of every joist, with the metal "L" bracket tight against the joist. Keep all the clips at the same level. Snap the 25 gauge hat channel with a hemmed edge detail into the clips, running parallel to the joists. Screw 5/8" drywall to the channel with a 1/4" gap around the perimeter, and seal the gap with acoustical sealant. See the RSIC-1 Low Profile install guide for the layouts.

Yes, RSIC-1 Low Profile clips are assembled in the USA.
