Where can I use Heat Wave Pro in my vehicle?

Heat Wave Pro works in cars, trucks, SUVs, vans, buses, boats, RVs, trailers, semi-trucks and tractors. The table shows where it goes and what it helps with in each spot. AreaWhat it helps withFloorHeat from hot components under the vehicle and heat from the engine. Covers the entire floor, including under the rear seats. It is also a higher-quality replacement for OEM jute. If you care about noise, layer it on top of Damplifier Pro.DoorsHeat. Goes inside the door cavity.TrunkHeat. Covers the floor, quarter panels, rear deck and wheel wells.CeilingHeat from the sun.FirewallEngine heat.

How does Heat Wave Pro compare to jute and foam insulation?

Heat Wave Pro is a foil-faced jute insulation that replaces standard jute, open-cell foam and closed-cell foam under carpet. The table shows how it compares to each. AlternativeHow Heat Wave Pro comparesStandard juteThe foil gives better heat control as a radiant barrier. It is also more durable, so it lasts longer under carpet instead of breaking down.Open-cell foamHeat Wave Pro is more durable under carpet.Closed-cell foamThe foil reduces heat transfer better, and Heat Wave Pro absorbs more sound.

What works best with Heat Wave Pro?

Heat Wave Pro performs best when layered over a vibration damper or sound deadener. Use Damplifier Pro or Spectrum for sound control, then layer Heat Wave Pro on top for added thermal control. Our Hood Insulation Package pairs Damplifier Pro with Heat Wave Pro.

How do I install Heat Wave Pro?

To install Heat Wave Pro, first remove the headliner, upholstery or carpet to expose bare sheet metal. Clean the surface, using denatured alcohol as needed. Cut Heat Wave Pro to size and leave room to reinstall your trim. You can install it with either spray adhesive or Super Strong Double Sided Tape. When choosing a spray adhesive, use P329 spray adhesive or 3M 90 to adhere it to your surface. Spray P329 on both Heat Wave Pro and the surface, wait 2-4 minutes until tacky, then press firmly for several minutes. Seal exposed edges and seams with foil tape. Factory carpet can go back on right away. See our Heat Wave Pro install guide for the full steps.

How do I cut Heat Wave Pro?

Scissors cut Heat Wave Pro for most jobs. A utility knife also works. For larger jobs, an electric fabric cutter with a self-sharpening blade is fastest.

How far should Heat Wave Pro be from a heat source?

Keep a 2" air gap between Heat Wave Pro and any direct heat source.

What is the R-value of Heat Wave Pro?

Heat Wave Pro has an R-value of 3.91 per inch. The table also shows the R-value when heat flows up, down and sideways. Upward heat flow matters most in winter, when a warm interior meets a cold roof. Downward heat flow matters most in summer, when a hot roof sits over a cooler interior. The directional values are higher because of the foil on both sides. Achieving these tested R-values requires an air gap. Heat flowR-valueTest methodPer inch3.91ASTM C 177Up7.85ASTM C 518Down16.39ASTM C 518Horizontal9.91ASTM C 518

How well does Heat Wave Pro absorb sound?

Heat Wave Pro has an NRC of 0.45 at 3/8". The table shows how much sound it absorbs at each frequency. Frequency (Hz)125250500100020004000NRCHeat Wave Pro 3/8"0.120.100.230.560.810.890.45

Is Heat Wave Pro fire rated?

Yes, Heat Wave Pro exceeds the FMVSS 302 standard, with a surface burn rate of less than 1/5" per minute. It is also Class A fire rated according to ASTM E84, with a flame spread of 10 and smoke developed of 20.

What is Heat Wave Pro made of?

Heat Wave Pro is a natural jute fiber pad between two sheets of reinforced aluminum foil. The jute comes from recycled t-shirts and jeans.

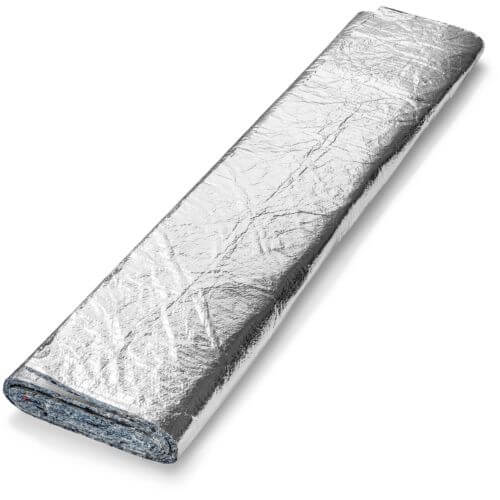

Heat Wave Pro top view of 24 square foot jute insulation sheet

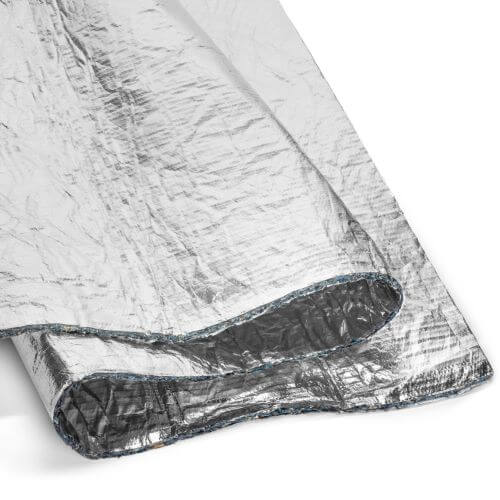

Heat Wave Pro is very flexible with two foil radiant barriers on each side surrounding jute insulation

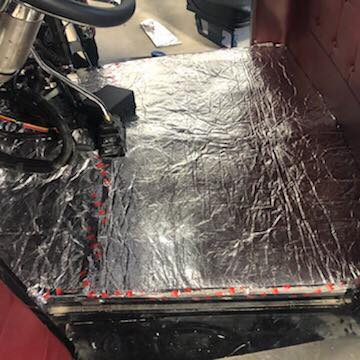

Heat Wave Pro adds floor insulation to a vehicle

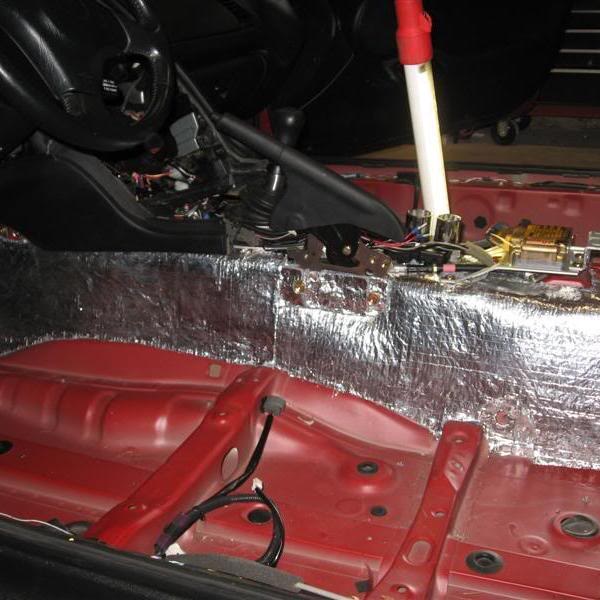

Insulate around a hot transmission tunnel with Heat Wave Pro

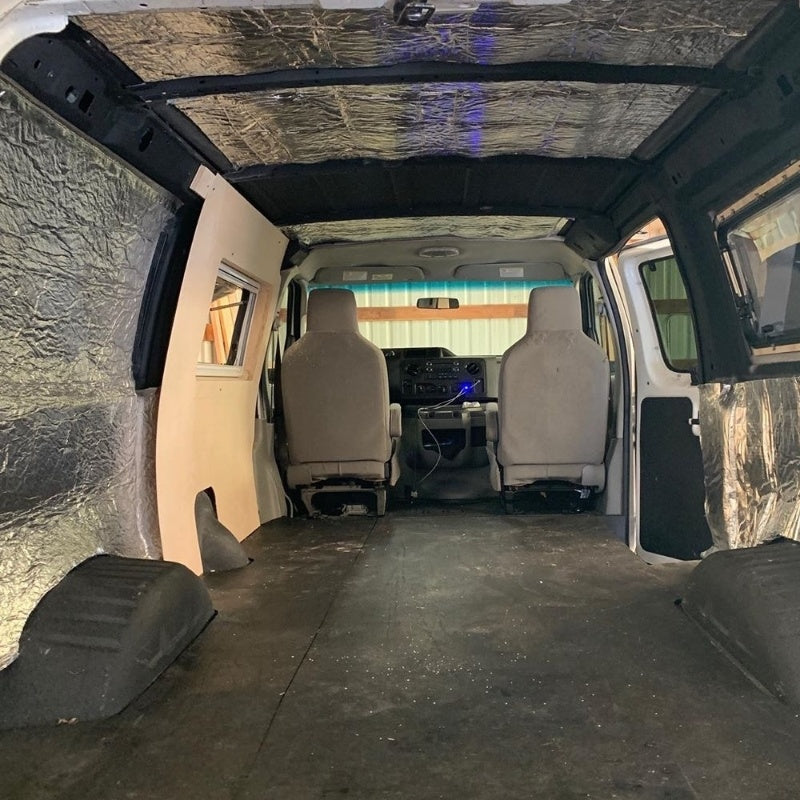

Van insulation with Heat Wave Pro is easy and cost effective!

Heat Wave Pro™ - Jute Insulation

Name: Heat Wave Pro™ - Jute Insulation
Brand: Second Skin Audio
SKU: HWPR-12-3/8-3648
Availability: InStock

In stock. This product ships in 1 business day.

$54.99

Size Options: 3' x 4' Sheet (12 Sq Ft)

3' x 4' Sheet 12 Sq Ft

4' x 6' Sheet 24 Sq Ft

Square Footage Calculator

Heat Wave Pro™ Jute Insulation

Further increase the comfort of your vehicle with an automotive thermal insulation built for heat and sound. Heat Wave Pro™ is a high R-value, lightweight sound absorber and decoupler. This thermal acoustic barrier contains a treated jute material surrounded by two layers of reinforced foil fabric. It's durable; it reflects radiant heat; and it insulates against both heat and noise transfer. Heat Wave Pro™ makes an excellent automotive floor insulation, car hood liner, and fits in anywhere else your factory insulation isn't doing the job.

Features

Thermal acoustic jute sandwiched between two sheets of reinforced foil
R-value per inch roughly 50% better than your average home insulation
Eco-friendly jute material is treated for fire, mold, and mildew resistance
Each sheet is 3/8" thick
Two size options: 3' x 4' (12 Sq Ft) and 6' x 4' (24 Sq Ft)
Temperature rated up to 250°F
Made in the USA

Free domestic shipping on all US orders

Specs

Dimensions	3' x 4' (12 sq ft), 6' x 4' (24 sq ft)
Thickness	3/8"
Weight	2.5 lbs (3' x 4' sheet), 5 lbs (6' x 4' sheet)
Temperature Rating	250°F
Thermal Insulation (R-value)	3.91 per inch
Adhesive Options	P329 Spray Adhesive (1 can per 25 sq ft) Super Strong Double Sided Tape

Material Testing

Noise Reduction Coefficient

Frequency (Hz)	125	250	500	1000	2000	4000	NRC
3/8" Jute	.12	.10	.23	.56	.81	.89	.45

Description	Testing Method	Performance
Heat Flow Direction R-value	ASTM C 177 ASTM C 518	"Up" - 7.85 "Down" - 16.39 "Horizontal" - 9.91
Fire Rating	ASTM E 84 UL 723	Class A Flame Spread (Class 1): 10 Smoke Developed (Class 1): 20
Zero Burn Surface	FMVSS 302	Exceeds Standard (Less than 1/5 in./min)
VOCs	CDPH Section 01350	Pass
Facing		99% Pure Aluminum Reinforced Foil
Foil Emissivity	ASTM E 40	.03
Foil Reflectivity	ASTM E 40	97%
Tensile Tear Strength		100 lbs
Pad Weight		3 oz./s.f.

Product Usage Tips

Cuts with scissors
Apply using our P329 Spray Adhesive (1 can per sheet) or Super Strong Double Sided Tape
We recommend applying on top of your sound deadener and below your noise barrier. It also is an excellent thermal insulator to use above your roof's headliner or under the hood. You can even use it as engine compartment insulation material on your boat or RV. Learn more about foil insulation R-Value to see why.
Keep at least 2" of clearance from the heat source. We recommend taping up edges with Foil insulation Tape
Cost-effective aftermarket insulation you can use as van or RV roof insulation

Common Product Uses

Doors - outer and inner door skin
Floor - install automotive floor insulation from the cabin side firewall all the way back to the rear deck seat wall
Firewall - cabin or engine side
Trunk - floor, walls, lid, and spare tire area
Roof - replace or install above the headliner
Hood - install a car hood liner under hood
Semi-truck sleeper cab insulation

RV & Motorhome Installs

Engine covers / Dog Houses
Generator compartments
Ceilings / Walls / Floors
Firewalls

Boat Installs

Engine covers / Dog Houses
Inside hull
Generator compartments
Pump housing
Bulkheads & overhead

Heat Wave Pro is a flexible thermal insulator and heat reflector that can be used for everything from a semi truck's walls to HVAC ductwork to insulating the inside of an RV/motorhome.

Resources

Installation Guides

Heat Wave Pro™ Install Guide

Spec Sheets

Heat Wave Pro™ Product Sheet

Heat Wave Pro™ - Jute Insulation

$54.99

Decoupler

Radiant Barrier

Sound Absorbing

Thermal Insulation

Vehicle Square Footage Calculator

How Much Heat Wave Pro™ - Jute Insulation Do I Need?

Step 1: Select your vehicle type

Step 2: Select the areas you want to cover

.section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__panel { visibility: visible; grid-template-rows: 1fr; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__trigger .icon-plus-toggle { display: none; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__item[hidden] { display: block; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__more { display: none; }

Yes, Heat Wave Pro is made to reduce heat transfer in a vehicle. The aluminum foil on both sides reflects 97% of radiant heat, and the R-value is 3.91 per inch. As a side benefit, it also absorbs airborne noise, with an NRC of 0.45.

Heat Wave Pro comes in a 3' x 4' sheet (12 sq ft) and a 4' x 6' sheet (24 sq ft). Use the vehicle square footage calculator above on this page to find your total. Our square footage help page explains how to measure. Our Hood Insulation Package and Boat Engine Compartment Insulation Package already include Heat Wave Pro.

Heat Wave Pro works in cars, trucks, SUVs, vans, buses, boats, RVs, trailers, semi-trucks and tractors. The table shows where it goes and what it helps with in each spot.

Area	What it helps with
Floor	Heat from hot components under the vehicle and heat from the engine. Covers the entire floor, including under the rear seats. It is also a higher-quality replacement for OEM jute. If you care about noise, layer it on top of Damplifier Pro.
Doors	Heat. Goes inside the door cavity.
Trunk	Heat. Covers the floor, quarter panels, rear deck and wheel wells.
Ceiling	Heat from the sun.
Firewall	Engine heat.

Heat Wave Pro is a foil-faced jute insulation that replaces standard jute, open-cell foam and closed-cell foam under carpet. The table shows how it compares to each.

Alternative	How Heat Wave Pro compares
Standard jute	The foil gives better heat control as a radiant barrier. It is also more durable, so it lasts longer under carpet instead of breaking down.
Open-cell foam	Heat Wave Pro is more durable under carpet.
Closed-cell foam	The foil reduces heat transfer better, and Heat Wave Pro absorbs more sound.

For most engine compartments, we recommend Mega Block. It has a peel-and-stick adhesive, so it is easier to install, and it is generally our more premium option. Mega Block is thicker, more rigid, and should not be compressed. We recommend Heat Wave Pro when the job needs something very flexible, such as sharp curves or tighter spaces. It is thinner, flexible, and compressible.
