Sound Lock™ Double Door Astragal Seal

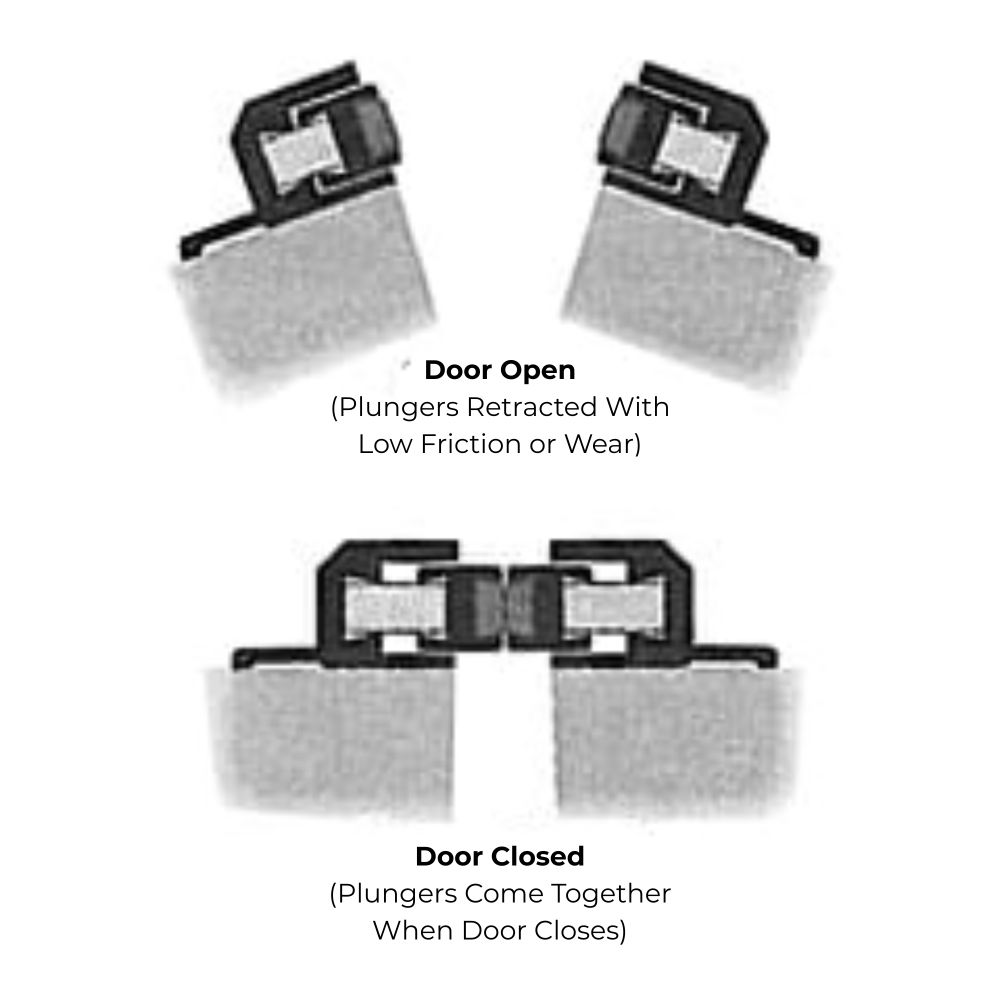

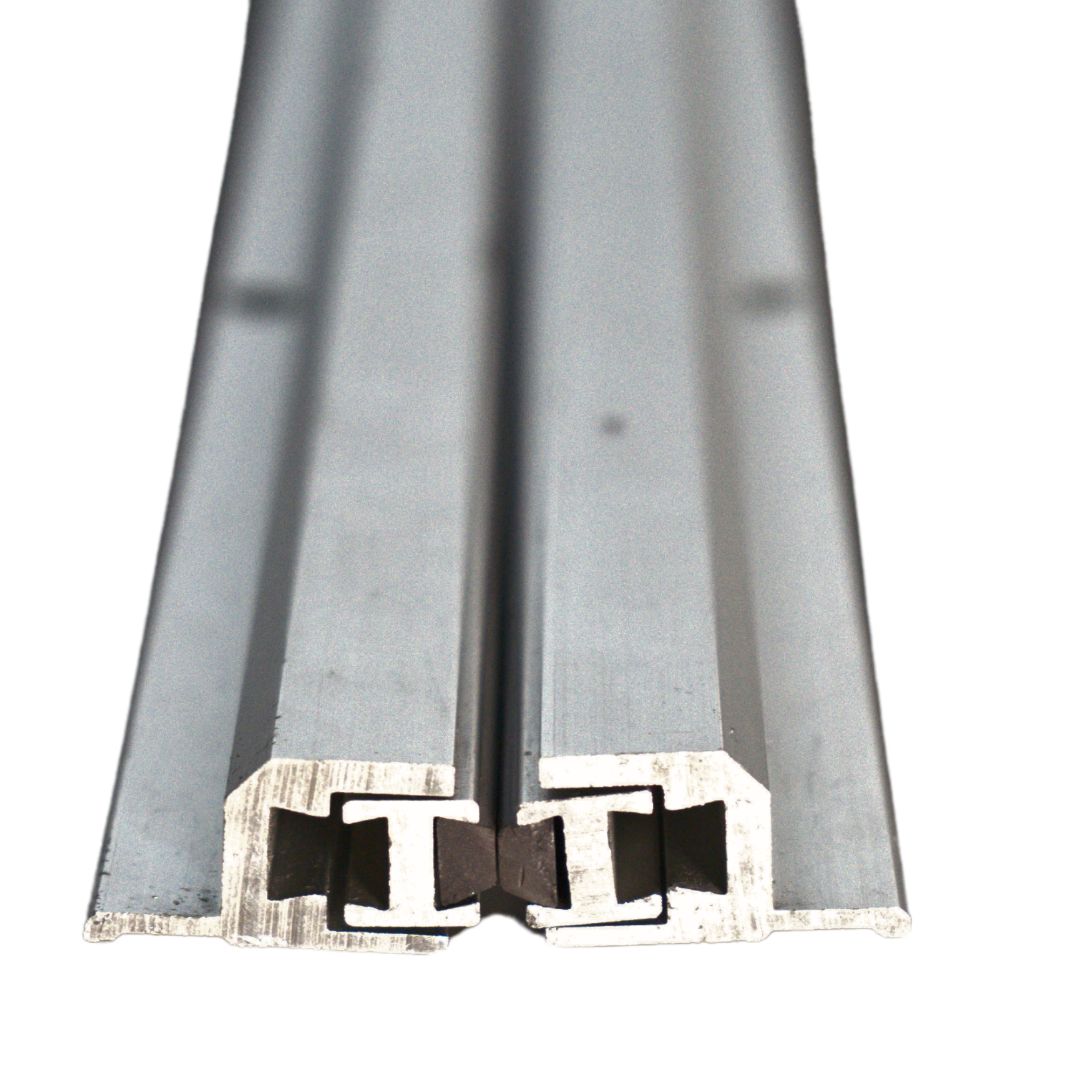

The Sound Lock Astragal Seal closes the gap between the two doors of a double door. It has two housings, one on each door. Spring-loaded plungers pull the doors together as they close, and magnets hold them tight for an airtight fit. It has no adjustment screws.

Yes, add the Sound Lock Astragal Seal if your two doors do not have a mullion or already seal against each other where they meet. Without it, sound passes through that gap even when the rest of the doors are sealed.

The Sound Lock Astragal Seal starts at $499.99 for a door jamb up to 80" tall. Taller jambs cost more, as the table shows. For a jamb taller than 96", request a quote. Call us at 1-800-679-8511 and we can price your doors.

Measure from the top of the door jamb to the floor. Choose a seal the same size as, or slightly bigger than, that height. Standard lengths are 80", 84" and 96". Custom lengths up to 120" are available by quote.

Yes, you can trim the Sound Lock Astragal Seal to any length. Leave the magnetic astragal assembled and cut only from the bottom end. Never trim the end with the red label. It is the reference end for aligning the internal parts.

Install the Sound Lock Astragal Seal so the magnets pull the two doors together as they close. Follow these steps:

1. Measure from the top of the door jamb to the floor to choose the seal length.
2. Trim from the bottom end only if needed, with the magnetic astragal assembled.
3. For a metal door, drill pilot holes before you fasten the seal.
4. Mount the seal so the gap between the two housings is 7/16".
5. Close the doors and check for light gaps between them.

Read the full Sound Lock Astragal Seal install guide before you start. Call us at 1-800-679-8511 and we can talk through your project.

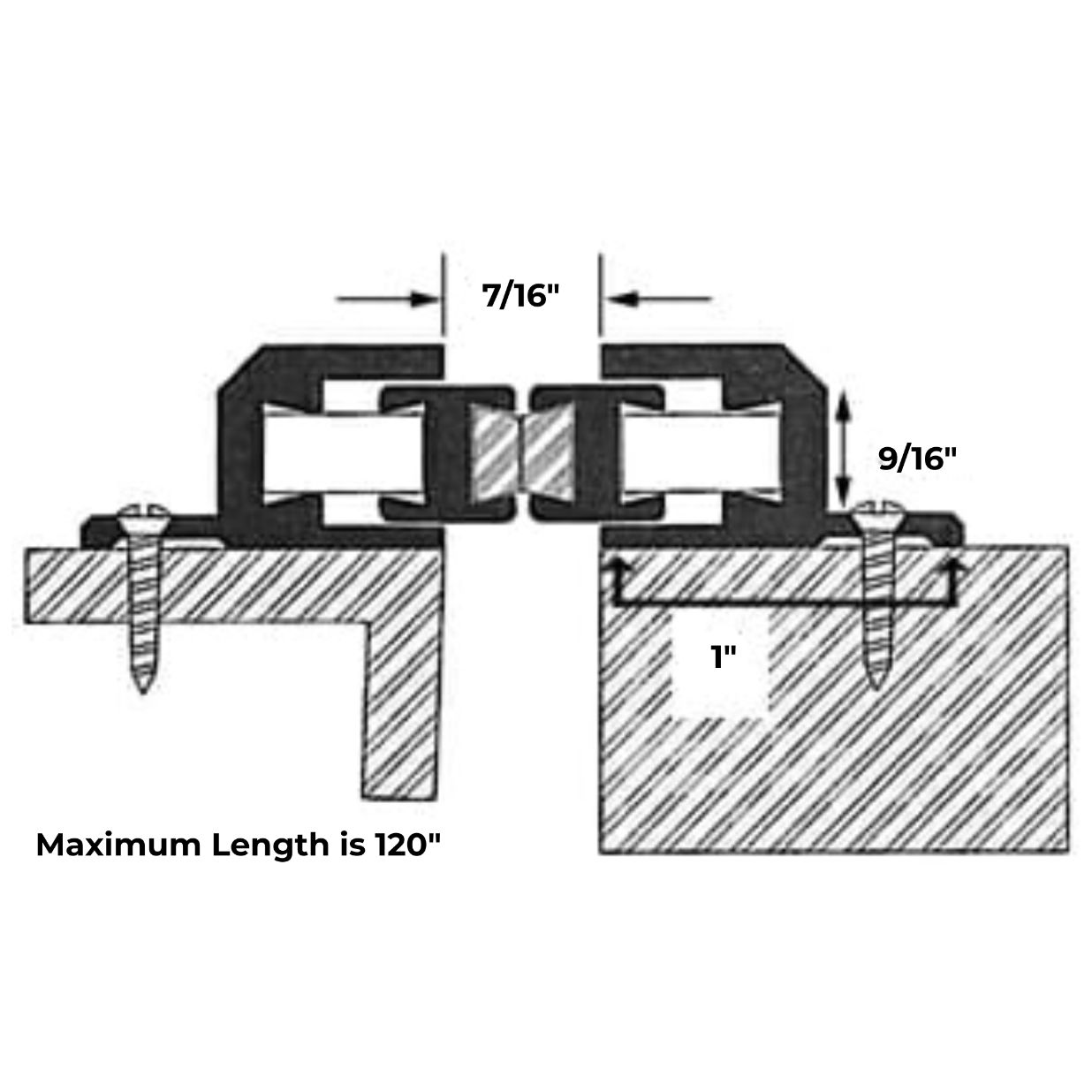

The ideal gap between the two housings of the Sound Lock Astragal Seal is 7/16". Anywhere from 3/8" to 1/2" works.

If an existing astragal blocks the Sound Lock Astragal Seal from mounting, run Sound Lock Gasket Seal Tape across it instead. Use two rows side by side for better coverage. The tape is 3/8" wide, so two rows cover about 3/4".

The Sound Lock Astragal Seal comes in Silver (clear anodized) as standard. Dark Bronze and Gold are also available by quote request. Call us at 1-800-679-8511 for pricing and lead time on a color.

Yes, we can quote custom lengths up to 120". You can also stack seals to reach a needed height, which is often simpler and cheaper than a custom piece. Call us at 1-800-679-8511 and we can help you choose.
