RSIC-SI-X Spring Isolator (75 spring box)

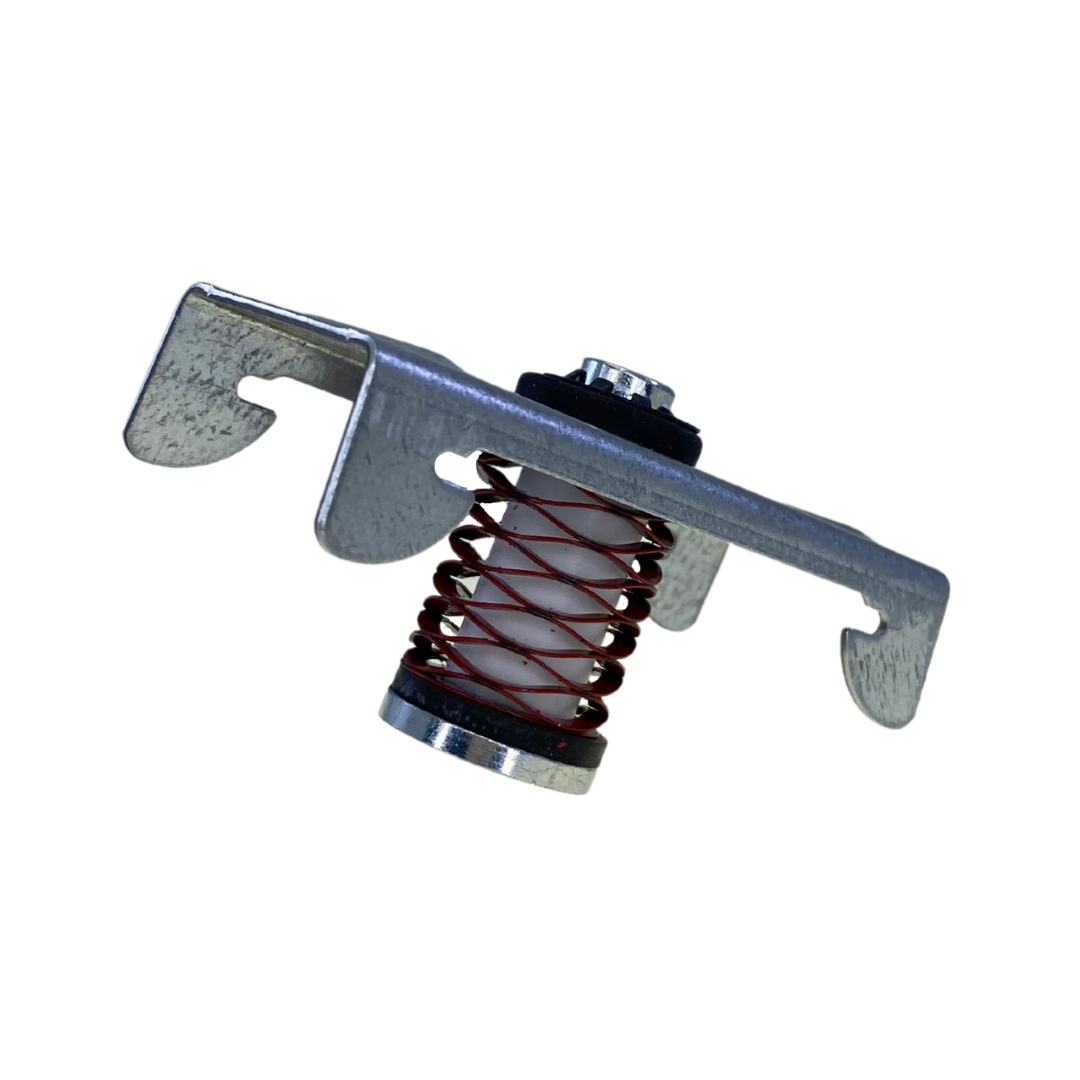

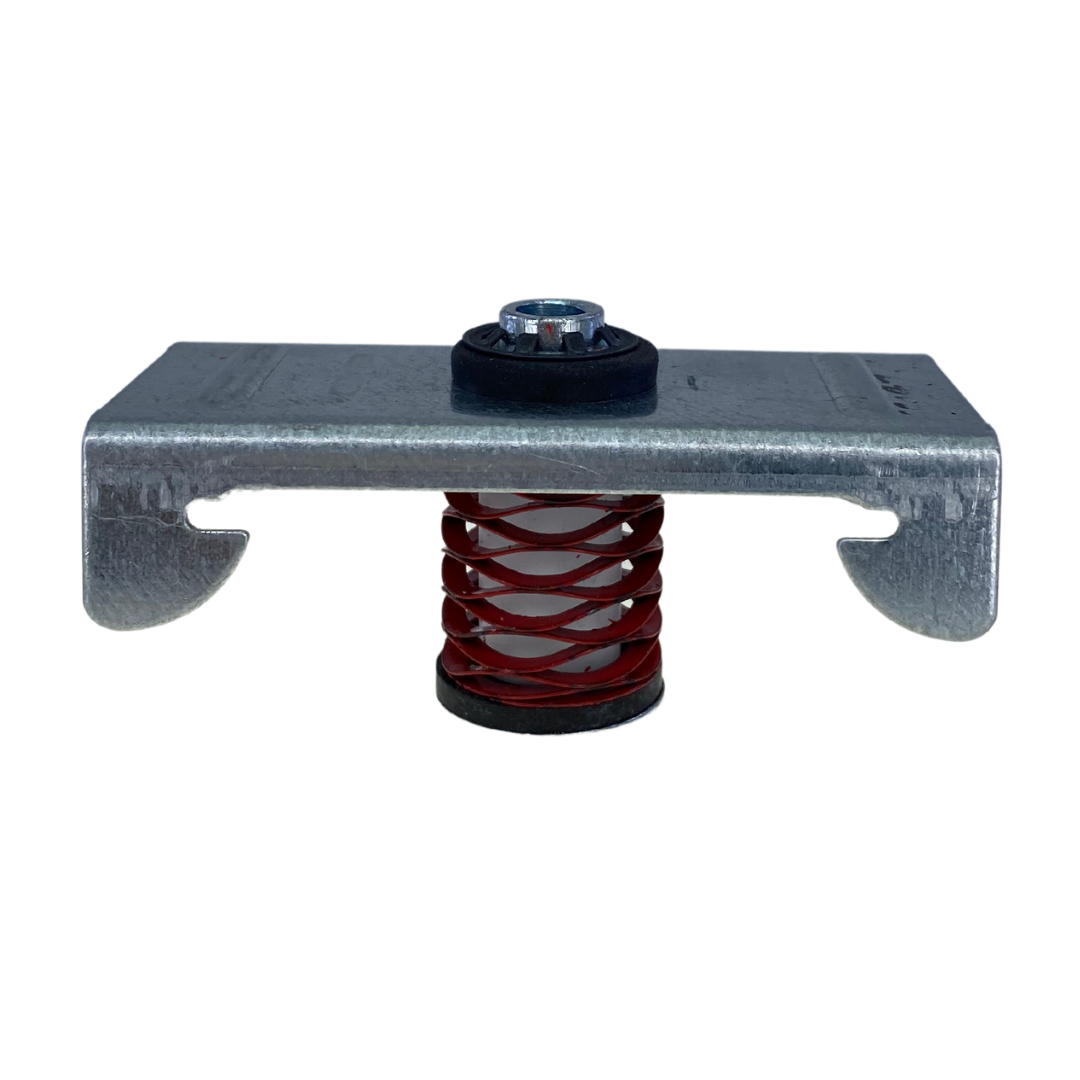

RSIC-SI-X is a low-profile spring isolation clip for ceilings. It ships fully pre-assembled and pre-calibrated, so it needs no calibration on site. A traditional 1" deflection spring hanger needs cold-rolled channel and backing installed in the field. RSIC-SI-X saves that labor.

Independent lab testing of ceilings with RSIC-SI-X reached STC 61-62 and IIC 54-70, depending on the flooring above. Both tests used open web truss ceilings with 2 layers of 5/8" drywall. The table lists the results.

RSIC-SI-X is a great fit for ceilings in home theaters, recording studios, basements, and multi-family buildings where both impact noise and airborne noise matter. It works with wood, steel, and concrete structures. For other needs and applications, call us at 1-800-679-8511 and one of our experts will help you find the right solution.

RSIC-SI-X springs go at 16" x 48" o.c. at the widest. That spacing is the same for 1 or 2 layers of 5/8" drywall. Each box holds 75 springs, with the mix of colors set by your ceiling layout. We provide the spring layout for your ceiling, including the count and color mix. Call us at 1-800-679-8511 with your ceiling design and we can help.

RSIC-SI-X springs are color coded by load, and the table shows where each one goes. We provide the layout for your project, so you know which color goes where. Call us at 1-800-679-8511 with your ceiling design and we can help.

You need RSIC-SI-X springs, 25 gauge hat channel with a hemmed edge detail, perimeter tape, 5/8" drywall, and acoustical sealant. For wood framing, use #8 x 2-3/4" minimum coarse thread screws. For steel framing, use #8 x 2-1/4" minimum fine thread screws, in steel at least 20 gauge. We recommend #10 or #12 x 2-3/4" screws for both wood and steel. Every fastener must be rated for 100 lbs of pull-out and shear. Hat channel is sourced by your local hardware store or drywall supplier.

Check that you have the right quantity of each color, then lay the springs out on the floor in the pattern of your ceiling. Fasten each spring to the structure. Set every spring at the same height with a laser level or tape measure. Keep the first drywall support less than 8" from the wall. Snap in the 25 gauge hat channel with a hemmed edge detail. Place perimeter tape 3/8" below the channel around the room. Install the drywall snug to the tape, then seal the edges with acoustical sealant.

Keep the hat channel and drywall from touching the wall framing, because direct contact lets sound bypass the springs. Leave a 1/4" gap around the drywall perimeter and fill it with acoustical sealant. Seal electrical boxes and other penetrations with acoustical sealant or putty pads.

Projectors, HVAC ducting, curtain tracks, and other heavy items need their own independent support. Do not hang them from the springs, hat channel, or drywall. That way the ceiling carries only its own weight and keeps its isolation.

Yes, RSIC-SI-X is included in UL fire resistive floor and ceiling designs. They cover wood joist, wood I-joist, wood open web truss, and steel joist construction. Reach out to us for help with your assembly.

RSIC-SI-X springs are made for interior use in spaces between 40°F and 100°F. That covers heated and cooled rooms such as home theaters, studios, basements, and condos.

Yes, RSIC-SI-X springs are made in the USA.
