PolyZorbe™ Vivid Polyester Acoustic Panels
In stock. This product ships in 1-3 business days.
Square Footage Calculator
PolyZorbe™ Vivid Polyester Acoustic Panels
PolyZorbe™ Vivid Polyester Acoustic Panels are a great, aesthetically-pleasing option to reduce the echo and reverb, improving the vocal audibility and intelligibility of any interior space. These panels are made with 60% recycled polyester and are Class A fire rated, meaning that it's rated for use in commercial buildings.
Features
- Polyester panels (60% recycled) add sound absorption for reduced echo and reverb
- Install as acoustic panels on walls, ceilings
- Non-allergenic, non-toxic, fungal resistant, and no chemical irritants or formaldehyde
- Decorative and tack-able
- Temperature rated up to 280°F
- Class A Fire Rated
- Easy to install and easy to clean
Couldn't load pickup availability
Specs
Specs
| Dimensions | 24" x 48" (8 sq ft) (Up to 48" x 96" available) |
| Thickness | 1/2" |
| Weight | 4 lbs |
| Edge Type | Square Edge |
| Temperature Rating | 280°F |

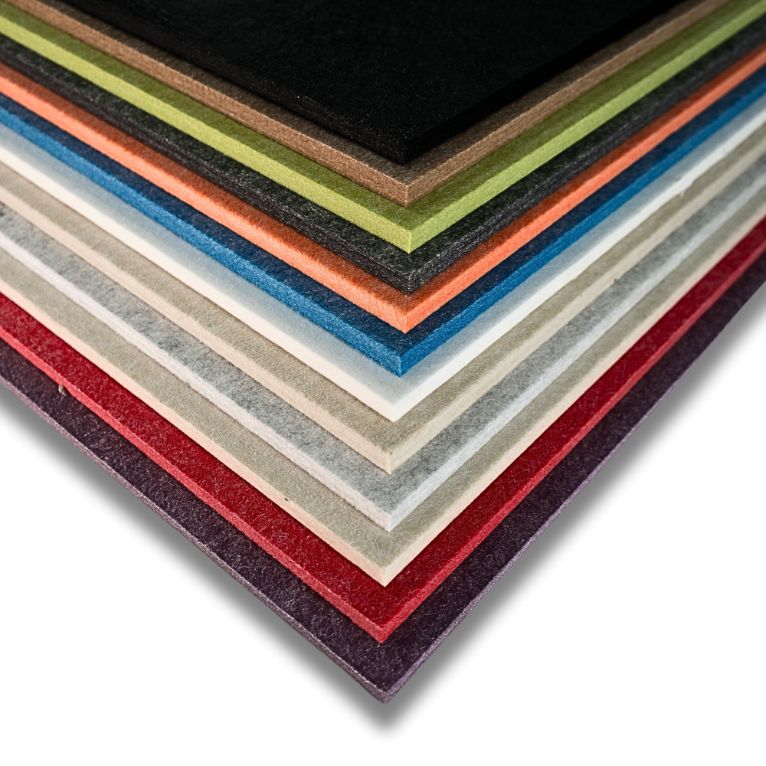

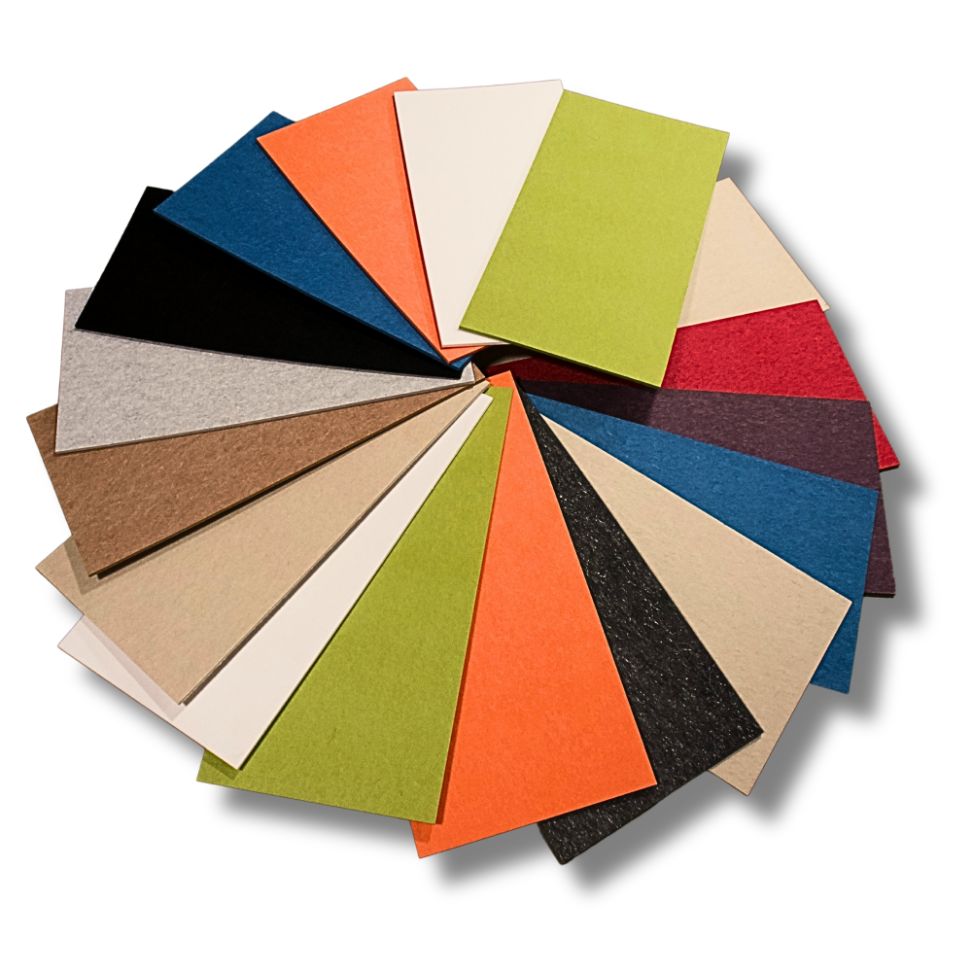

| Colors | Beige, Black, Blue, Brown, Grey, Green, Orange, Purple, Red, Silver, Tan, White |
Large acoustic wall panels in 48" x 48" and 48" x 96" available!
Material Testing
Material Testing
Noise Reduction Coefficient
| Panel Type | Thickness | Mount Type | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| PolyZorbe™ Acoustic Panel | 1/2" | A (Wall Mounted) | 0.01 | 0.07 | 0.26 | 0.54 | 0.78 | 0.94 | 0.40 |
| PolyZorbe™ Acoustic Panel | 1/2" | D-20 (0.75" airspace) | 0.09 | 0.14 | 0.39 | 0.78 | 0.97 | 1.01 | 0.55 |
| PolyZorbe™ Acoustic Panel | 1/2" | D-40 (1.5" airspace) | 0.09 | 0.25 | 0.68 | 0.94 | 1.00 | 0.86 | 0.70 |
| Tested Properties | Testing Method | Performance |
|---|---|---|
| Acoustical Performance | ASTM C423 (A Type Mount) | NRC: 0.40 |
| Fire Rating | ASTM E84 | Class A |
| Fungal Growth | ASTM C1338 | Pass |
| VOC | CDPH Standard Method v1.2 | Pass |
Installation Instructions
Installation Instructions
Recommended Adhesive: P329 Spray Adhesive
- Place the PolyZorbe™ panel on the wall. Make a horizontal and vertical line along the edge of the panel using a level, intersecting at one corner.
- The P329 Spray Adhesive is an aggressive, pressure sensitive adhesive designed for PERMANENT bonding of our acoustical panels to a drywall, metal, concrete, or wood substrate.
- Apply spray adhesive to both the material and the substrate with 80 to 100% coverage. To avoid overspray, a small gap around the edge is not a problem.
- Allow 2-4 minutes for the spray adhesive to tack up.
- Press the material and substrate together with as much pressure as practical. The initial bond is very strong, but maximum strength is achieved in 1-3 days.
- These steps can be found in our .
If buying adhesive locally, we recommend a combination of construction adhesive (Loctite Power Grab or equivalent) and spray adhesive (3M Super 77 or equivalent). See our for instructions. PolyZorbe can also be installed with mechanical fasteners. See for instructions.
Common Product Uses
Common Product Uses
- Homes, apartments, home studios, recording studios, condos, hotels, conference rooms, offices, music practice rooms, band rooms, houses of worship, community centers, government and municipal buildings, hospitals, medical clinics, auditoriums, malls, retail stores, theaters, schools, classrooms, restaurants, bars, manufacturing plants, and warehouses
- Can be used as high performing, absorptive acoustic ceiling tiles (PolyZorbe™ EZ Drop)
Resources
Installation Guides
Spec Sheets
Architect CSI Specs
Product FAQs
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1/2" PolyZorbe Vivid Panel, wall mounted | 0.01 | 0.07 | 0.26 | 0.54 | 0.78 | 0.94 | 0.40 |
| 1/2" PolyZorbe Vivid Panel, 3/4" air gap | 0.09 | 0.14 | 0.39 | 0.78 | 0.97 | 1.01 | 0.55 |
| 1/2" PolyZorbe Vivid Panel, 1-1/2" air gap | 0.09 | 0.25 | 0.68 | 0.94 | 1.00 | 0.86 | 0.70 |
| Product | Thickness | Density | NRC | Colors |
| PolyZorbe Vivid | 1/2" | 12.5# | 0.40 | Beige, Black, Blue, Brown, Green, Grey, Orange, Purple, Red, Silver, Tan and White |
| PolyZorbe | 1" 2" | 1": 7.5# 2": 5# | 1": 0.70 2": 0.95 | White, Beige, Black and Silver |
| Method | What you need | Install guide |
| Pin-head nails or screws and washers | Small pin-head nails, or screws with washers, placed at least 3/4" from the panel edges | Direct attach install guide |
| Spray adhesive | X60 spray adhesive on the panel and the wall, 80-100% coverage | Spray adhesive install guide |
| Construction adhesive | Construction adhesive in a box around the perimeter and an X from each corner on the panel back, plus P329 spray adhesive in the voids | Construction adhesive install guide |
