What sizes does Luxury Liner 2 lb MLV come in?

Luxury Liner 2 lb MLV is a nominal 1/4" thick roll. The standard sizes are 4' x 12' and 4.5' x 10'. Larger rolls are available by quote. Roll SizeCoverageWeight4' x 12'48 sq ft96 lbs4.5' x 10'45 sq ft90 lbs4' x 15'60 sq ft120 lbs, by quote4' x 25'100 sq ft200 lbs, by quote4.5' x 15'67.5 sq ft135 lbs, by quote

Is Luxury Liner 2 lb MLV fire resistant?

Yes, Luxury Liner 2 lb MLV passes FMVSS 302 and is fire resistant. It is temperature rated up to 175°F.

How do I install Luxury Liner 2 lb MLV on a wall?

To install Luxury Liner 2 lb MLV on a wall, hang it from the top plate first. Use staples every 6" or nails or screws with washers every 12" to 16". Then fasten it along the studs and bottom plate before the MLV hangs free. Butt seams at the center of a stud and tape them, or overlap by 2" and seal with foil tape. Add 5/8" drywall over it and seal the perimeter with acoustical sealant. See our Luxury Liner install guide for the full steps.

How do I cut Luxury Liner 2 lb MLV?

Cut Luxury Liner 2 lb MLV with a sharp utility knife, using a 48" drywall T-square for straight cuts. The 2 lb material is thicker, so start with a fresh blade.

How do you punch grommet holes in the MLV?

For residential jobs with a small number of grommets to punch in Luxury Liner MLV, a grommet punch kit (available on Amazon) is the recommended tool.

What is Luxury Liner 2 lb MLV made of?

Luxury Liner 2 lb MLV is made from mass loaded PVC plastic.

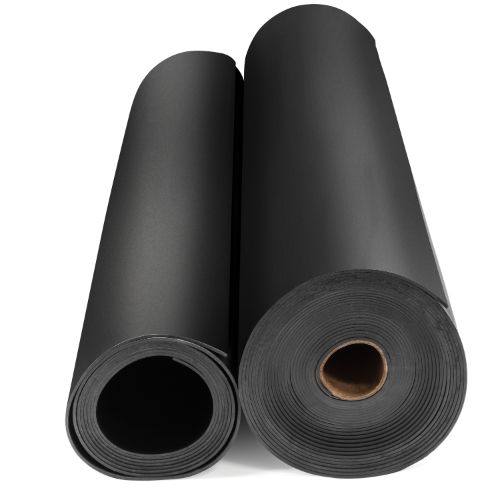

Luxury Liner 2lb MLV rolls before boxing up

Luxury Liner™ 2 lb MLV Roll - Mass Loaded Vinyl

Name: Luxury Liner™ 2 lb MLV Roll - Mass Loaded Vinyl
Brand: Second Skin Audio
SKU: LLRO-1/4-4x12-MLV-2LB
Availability: InStock

In stock. This product ships in 3-5 business days.

$299.99

Choose 2lb Roll Size: 4'x12' Roll (48 Sq Ft | 96 lbs)

4'x12' Roll 48 Sq Ft | 96 lbs

4'x15' Roll Request a Quote

4'x25' Roll Request a Quote

4.5'x10' Roll 45 Sq Ft | 90 lbs

4.5'x15' Roll Request a Quote

Square Footage Calculator

Luxury Liner™ 2 Lb Mass Loaded Vinyl Roll

Second Skin's Luxury Liner 2 lb MLV roll is one beefcake of a soundproofing material. Rated with an STC 32, you can't block more noise with 1/4" thick material. The Luxury Liner limp mass barrier roll comes in two standard thicknesses (1lb MLV rolls and this 2 lb MLV version). All Second Skin MLV rolls are flexible, tear resistant, odorless, STC rated, and fire rated at the FMVSS 302 standard. We also carry UL rated MLV, which you can request via a call or quote.

Features

Nominal 1/4" thick premium mass loaded vinyl
Each roll is 48" or 54" wide and comes in customizable lengths (up to 100 feet)
Weight: 2 lbs per square foot
STC rating: 32
How does 2 lb MLV compare to the 1 lb MLV? The 2 lb MLV density is the heaviest version of MLV available. This is the preferred MLV density for soundproof boxes, home theaters, and certain industrial or commercial applications. Reach out if you're unsure between the Luxury Liner 2 lb and Luxury Liner 1lb MLV options.
Proudly made in the USA

Free domestic shipping on all US orders

Specs

Dimensions	4' x 12', 4' x 15', 4' x 25', 4.5' x 10', 4.5' x 15'
Thickness	Nominal 1/4"
Weight	1 lb per sq ft, 2 lbs per sq ft
Color	Black
Temperature Rating	175 °F
STC Rating	32

Material Testing

Sound Transmission Loss

Frequency (Hz)	125	250	500	1000	2000	4000	STC Rating
1 lb Luxury Liner MLV	14	19	22	27	32	37	26
2 lb Luxury Liner MLV	19	20	27	34	38	43	32

Testing Properties	Testing Method	Performance
Tensile Strength	ASTM D412	Minimum 400 psi
Elongation	ASTM D412	120%
Tear lbs / 1"	ASTM D624	77
Federal Motor Vehicle Safety Standard	FMVSS 302	Pass

Installation Instructions

Home & Commercial

Recommended Install Method: staples, screws, nails, or hung with reinforced grommets

Install Locations: soundproofing a room, walls, soundproof boxes, generator boxes, generator enclosure, soundproof fence, mechanical rooms, machinery enclosures, office partition walls

Steps to Soundproof a Wall

Measure the height of the wall. Roll out the 2lb Luxury Liner so the length of the material matches the wall's height. Cut Luxury Liner using a sharp utility knife and a T-square to ensure you make a straight cut. You can also cut Luxury Liner with a good pair of upholstery scissors. Just be careful you don't make crooked cuts!
Fasten Luxury Liner to the wall using staples, screws or nails. Start attaching Luxury Liner at the top of the wall, and work your way across ensuring the MLV stays straight. Be sure to add enough fasteners to support the 2lb Luxury Liner weight before allowing it to hang.
The preferred installation method is to install Luxury Liner to a wall that has insulation and framing, but no drywall yet. There are a variety of installation methods that will improve performance, such as sound isolation clips or a double wall, but if you are not an experienced installer, we recommend to just focus on the basics, and ensure you have a sturdy install that is airtight and gapless.
If the wall already has drywall, we recommend removing the existing drywall. If you choose to install Luxury Liner on top of drywall, it must be attached to the studs or joists. Drywall will not support the weight of Luxury Liner.
After you've finished attaching Luxury Liner to the studs and the bottom of the wall, repeat the steps you just did for your second cut off the MLV roll. Do not cover any wall outlets or light switches. Leave them exposed.
As you work your way across the wall, keep the ends directly next to each other. (AIRTIGHT!) If the edges connect on a stud, use acoustic caulk to seal the gap. If the edges connect over an air gap, use foil tape to seal the edges.
After you've finished getting the Luxury Liner up on the wall, use your acoustic sealant caulk to seal ALL of the edges, both between the sheets of MLV and between the Luxury Liner and the wood studs. THIS IS A KEY STEP TO ENSURE YOUR BARRIER IS AIRTIGHT. If you have not hung drywall, now's the time to begin installing 5/8" drywall on top of the Luxury Liner.

Have a Smaller Project? You should take a look at getting a pre-cut thick vinyl sheet.

Our Quiet Quilt line of sound blanket barriers combine reinforced MLV with a vinyl facing for sound absorption and sound blocking. The Quiet Quilt Soundproof Blankets we list on the website come with a standard 1 lb MLV, but we also can sew them with 2 lb MLV barrier. Reach out to us for a quote!

Luxury Liner MLV acoustical barrier installed between fiberglass insulation and drywall in wall assembly

Common Product Uses

Soundproofing a room
Walls
Soundproof fence (outdoors)
Generator boxes
Generator enclosure
Wrap noisy pipes (PVC)
HVAC ducts
Mechanical rooms
Machinery enclosures
Bathroom wall treatments
Office partition walls

Resources

Installation Guides

Luxury Liner™ Roll Install Guide

Spec Sheets

Luxury Liner™ Product Sheet

Architect CSI Specs

Luxury Liner™ CSI Spec

Luxury Liner™ 2 lb MLV Roll - Mass Loaded Vinyl

$299.99

.section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__panel { visibility: visible; grid-template-rows: 1fr; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__trigger .icon-plus-toggle { display: none; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__item[hidden] { display: block; } .section-template--22730809311332__faq_accordion_ssa01 .faq-accordion__more { display: none; }

Luxury Liner 2 lb MLV is a great sound blocker. You can create a barrier with it or use it as part of an overall wall assembly. It has an STC rating of 32. Here is how it performs across the frequency range:

Frequency (Hz)	125	250	500	1000	2000	4000	STC Rating
Luxury Liner 2 lb MLV	19	20	27	34	38	43	32

Yes, 2 lb MLV is worth choosing over 1 lb when you need maximum sound blocking and if you are dealing with lower frequency noise. The 2 lb roll rates STC 32, six points above the 1 lb roll at STC 26. It is twice the weight per square foot, so plan on more help when you hang it.

Luxury Liner 2 lb MLV is best used to soundproof walls in homes, condos, apartments, offices, music rooms, bars, and restaurants. It also works in mechanical rooms and manufacturing facilities, and on enclosures, pipes, and HVAC ducts.

Luxury Liner 2 lb MLV works by being installed at 100% coverage. Measure the square footage you want to cover and choose roll sizes that add up to it. Allow a little extra for seams and cutouts. Every project is different. Call us at 1-800-679-8511 to speak with one of our soundproofing experts about how much you need.

Luxury Liner 2 lb MLV is a nominal 1/4" thick roll. The standard sizes are 4' x 12' and 4.5' x 10'. Larger rolls are available by quote.

Roll Size	Coverage	Weight
4' x 12'	48 sq ft	96 lbs
4.5' x 10'	45 sq ft	90 lbs
4' x 15'	60 sq ft	120 lbs, by quote
4' x 25'	100 sq ft	200 lbs, by quote
4.5' x 15'	67.5 sq ft	135 lbs, by quote
