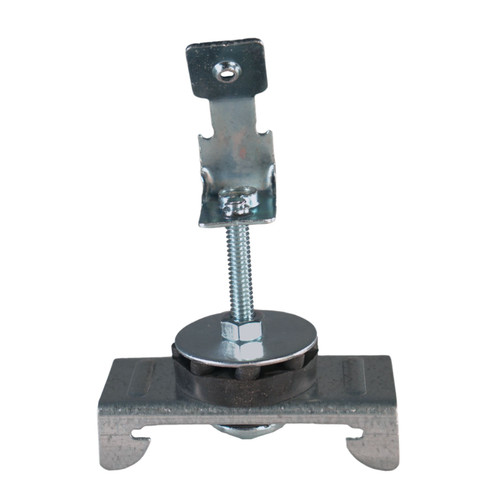

RSIC-1 ADM Shoot-In Multi Clips
RSIC-1 ADM shoot-in multi clips are the cost-conscious, time-friendly alternative to spring isolators. These clips save on labor with an adjustable isolator to maximize performance with a minimum ceiling drop, and they can be shot into concrete for a speedy install. Keep your space and keep your performance with RSIC-1 ADM clips!
| Dimensions | 3″ x 1.25″ x 1.5″ nominal |
| Maximum Load | 36 lbs per isolator |
| Maximum Spacing | 24" x 48" oc will support up to 2 layers of 5/8" drywall 16" x 48" oc will support 3 layers of 5/8" drywall |
| Ceiling Drop Minimum | 2-5/8" |
| Ceiling Drop Maximum | 12" |
| Furring (Hat) Channel | 0.0018" thick 25 gauge, hemmed edge detail Depth: 7/8" Width (bottom): 2-9/16" to 2-11/16" Width (top): 1-1/4" Meets or exceeds SFIA and SSMA requirements |
| RSIC-1 ADM to Concrete | 3/4" minimum gas or powder actuated pin |
| RSIC-1 ADM to Wood | #7 x 1-5/8" minimum size coarse thread screw |
| RSIC-1 ADM to Steel | #7 x 1" minimum size fine thread screw |
| Estimated Labor Rates | 60 clips per hour | 550 LF of hat channel per hour |
| Free Shipping | Free 2-Day Shipping Included |
| Ceiling Drop Size | Min Drop | Max Drop |
| 2-5/8" | 2-5/8" | 2-5/8" |
| 3" | 3" | 3-1/2" |
| 3-1/2" | 3-1/2" | 4" |
| 4" | 4" | 4-1/2" |
| 4-1/2" | 4-1/2" | 5" |
| 5" | 5" | 5-1/2" |
| 6" | 6" | 6-1/2" |
| 7" | 7" | 7-1/2" |
| 8" | 8" | 8-1/2" |
| 9" | 9" | 9-1/2" |
| 10" | 10" | 10-1/2" |
| 11" | 11" | 11-1/2" |
| 12" | 12" | 12" |
*for a ceiling drop greater than 12", we recommend the RSIC-WHI, RSIC-DC04 with wire, or the RSIC-1.5 CRC.
For help choosing the correct ceiling drop for your assembly, call us at 1-800-679-8511.
| Spec Sheet | RSIC-1 ADM Product Sheet |
| Install Guide | RSIC-1 ADM Install Guide |
24" x 48" OC (Concrete, Wood or Steel)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 24 clips | 44 clips | 64 clips | 84 clips |
| 20' | 44 clips | 66 clips | 99 clips | 126 clips |
| 30' | 64 clips | 99 clips | 144 clips | 189 clips |
| 40' | 84 clips | 126 clips | 189 clips | 231 clips |
16" x 48" OC (Concrete)
| Room Dimensions | 10' | 20' | 30' | 40' |
| 10' | 36 clips | 64 clips | 96 clips | 124 clips |
| 20' | 64 clips | 96 clips | 144 clips | 186 clips |
| 30' | 96 clips | 144 clips | 216 clips | 279 clips |
| 40' | 124 clips | 186 clips | 279 clips | 341 clips |
