Luxury Liner Reinforced Mass Loaded Vinyl

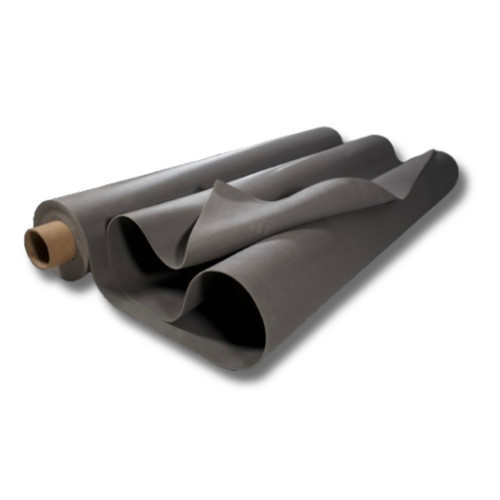

Luxury Liner™ Reinforced Mass Loaded Vinyl Roll

FREE Standard Shipping Details

×

FREE Standard Shipping

Free shipping is valid on any order shipped to a single address in the mainland USA. Standard shipping is covered. Overnight or 2-day delivery will cost extra and is not available on custom-made products.

In Stock. This product ships in 1-3 business days.

Bulk discounts available. Save per roll at 10, 25 and 40 rolls.
$399.99
Covers 0 SF
$399.99

Luxury Liner™ Reinforced Mass Loaded Vinyl Roll

Second Skin's Luxury Liner™ reinforced mass loaded vinyl roll is perfect for creating outdoor barriers and for any application where it needs to hang vertically. This roll can be left exposed to contact and hang vertically because of its high tensile strength and tear resistance. These rolls are reinforced with scrim and also meet fire and safety standards so you can get the job done without having to worry.



Features

  • Nominal 1/8” thick premium reinforced mass loaded vinyl
  • Each roll is 4' wide x 25' long (100 sq ft) or 4.5' wide x 30' long (135 sq ft)
  • Weight: 1lb per square foot
  • Tensile Strength: 1155 psi
  • Breaking Strength: 200lbs
  • STC rating: 27
  • How does 1lb reinforced MLV compare to standard 1lb MLV? 1lb reinforced MLV weighs the same per square foot and is just as flexible, but 1lb reinforced mass loaded vinyl has many times the tensile strength (1155 psi) of standard 1lb mlv, making it perfect for fence soundproofing and any vertically hanging applications.
  • Proudly made in the USA





Specs

 Dimensions   4’ x 25’, 4.5’ x 30’, Call for Custom Sizes
 Thickness   Nominal 1/8"
 Weight   1lb per sq ft
 Tensile Strength  1155 psi
 Color   Grey
 Temperature Rating   -40°F to 200°F
 STC Rating   27





Material Testing

Sound Transmission Loss

 Frequency (Hz)  125   250   500   1000   2000   4000   STC Rating
 1lb Reinforced MLV Sound Transmission Loss (dB)   17  17  23   28   33   37  27









 Tested Properties  Performance
 Tensile Strength   1155 psi
 Elongation   76.7%
 Tear Strength  60lbs
 Breaking Strength   200lbs
 Flammability Rating   Self-extinguishing





Installation Instructions

Indoor

Recommended Install Method: Reinforced grommets

  • Roll out the MLV so the length of the material matches the barrier's height, less 1/8". Using a T-square, cut the mass loaded vinyl using a sharp utility knife.
  • Fasten the MLV to the barrier using reinforced grommets. Start attaching the MLV at the top of the barrier and work your way across ensuring the MLV stays straight.
    • Drywall will not support the weight of MLV. Always attach to studs.
    • Cut out space for any protrusions like outlets.
  • As you work your way across the barrier, keep the ends of the MLV directly next to each other for an airtight barrier. Use acoustic caulk to seal any gaps.

Outdoor

Recommended Install Method: Reinforced grommets

  • Using grommets, fasten the MLV with 100% coverage on fencing (chain link, wood), stick frame (stainless steel, aluminum), scaffolding, or other supporting structure.
  • Edges should butt up next to one another.





Common Product Uses
